lunes, 16 de noviembre de 2015
SPECIFICATION
Normal AVR supply power, 2 auxiliary windings
(X1, X2, and Z, Z2)
Shunt supply : 150 - 50/60Hz
Rated overload current: 10A, 10s
Electronic built-in (overload, short circuit, and loss of sensing) protection: if excitation current raises over 10 amps for more then 10 seconds, excitation current will drops automatically to about 1A.
To reset AVR protection, generator must be stopped (or by cutting supply voltage to the AVR)
Protection of power inputs by fuses F1
Voltege sensing: 5VA insulated transformer with input volge taps at:
Terminals 0-110V= 95 to 140V
Terminals 0-220 V = 170 to 260 V
Terminals 0-380 V = 340 to 520 V
Output voltage adjustment by using pot P2
Other sensing voltages by using an adapting other transformers
Current sensing (parallel operation) CT 2.5 VA class 1 secondary current xxx/1 (optiona).
Adjustment of quadrature droop with pot P1
Under-speed (U/F) and LAM protection: for knee frequency adjustable use P4.
Excitation over current adjustment use P5: 4.5 to 10A
For 50/60 Hz (U/F) selection use jumper ST3.
SPECIAL APPLICATIONS
Field de- energizing
Cutting excitation current is accomplished by switching off the supply power to AVR (1 lead on each auxiliary winding)
Contacts capacity : 10A. 250V AC
This is the same connection used to reset internal protection of AVR.
TECHNICAL DATA
Precisione di regolazione: +/-0.5% a regime, per valori di tensione e carico nominali steady state conditions, for rated Voltage and PF
Deriva Termica: +/- variazione di tensione per variazione T amb 50°C
Voltage Drift: of voltage for 50 -3 Tamb change
Tempo di risposta: 1 ciclo (20ms-16.6ms)
Response Time: 1 cycle (20ms- 16.6ms)
Temperatura di esercizio: -30°C / +70°C
Operating Temperature :
Resistenza di campo eccitatrice: 3.5 (min) + 20 (max)
Exciter field resistance:
Dati di ingresso e uscita:
Input/output data:
- Tensione di alimentazione: 170-277V (50/60Hz)
-Supply voltage:
-Potenza di alimentazione: 1000 VA (max)
-Power supply:
-Potenza dissipata: 30 W (max)
-Power dissipated
-Rilievo di tensione trifase: 170-270 / 380- 415 / 440- 480 V
-Voltage sensing: (three or single phase sensing)
-Tensione di uscita (DC): 80V (max, servizio continuo)
-Output voltage (DC):
-Corrente di uscita (CD) 8A (max, servizio continuo)
-Output current (DC): (max, continuous)
-Corrente di uscita (DC): 15A (max, in forzamento 1 minuto)
-Output current (DC): (max 1 minute forcing)
miércoles, 16 de septiembre de 2015
INTRODUCTION
The AVC63-4 voltage regulator is an encapsulated electronic voltage regulator that controls the output of a brushless AC generator by regulating the current into the exciter field.
SPECIFICATION AVC63-4 REGULATOR
Sensing & power input 190-240 Vac
Burden 500 VA
Output power- continuos 75 Vdc at 3.5 Adc (225w)
Output power - forcing (240 Vac input power) 105 Vdc at 5 Adc (525w)
Regulation 1.0%
Remote voltage adjustment range +/- 10% with 2000 ohm rheostat +/- 5% with 1000 ohm rheostat
Fraquency compensation adjustable
Roll off frequency 54- 61 Hz for 60 Hz 45- 51 Hz for 50 Hz
Operation weight6.5 oz.
Operating temperature -40°C to + 60° C
Storage temperature -65°C to + 85°C
Power dissipation 8 watts maximum
Size 3.94" LX 2.66" W X 2.20:H
Voltage buildup internal provisions forautomatic voltage build up from generator residual voltage as low as 10 Vac
EMI suppression internal electromagnetic interference filter (EMI filter)
domingo, 16 de agosto de 2015
Technical Data
Regulation Accuracy
+/- 0.5% rated steady state conditions
Voltage Drift:
+/- 0.5% voltage change, for 50°C
Response Time:
1 cycle
Operating Temperature:
-30 °C % +70 °C
Exciter Field Resistance:
8 (min) % 20 (max)
Supply Voltage:
170-270 V
Power Supply:
350 VA (max)
Power Dissipated:
15 W (max)
Voltage Sensing:
170-270 V
Output Voltage (DC):
30V
Output Current (DC):
5 A (max, continuos)
Output Current (DC):
8A (max forcing one minute)
Introduction
Sensing Input
Voltage 60- 510 VAC single phase 2 wires
voltage is DIP switch selectable
Frequency 50 / 60 Hz, DIP switch selectable
Power Input
Voltage 60 - 300 VAC, single phase 2 wires
Output
Voltage Max. 90 VDC @ 240 VAC input
Corrent Continuos 16A
Intermittent 20A for 10 sec
Resistance Min. 5 ohm
Voltage regulation
Residual voltage at AVR terminal > 5 VAC
Thermal Drift
0,03% per °C change in AVR ambient
Load Current Compensation
1A or 5A Max. 7% @ PF0.5 DIP Switch Selectable
Analogue Voltage Input
Max. +/-10% @ +/-3VDC
Over Excitation Protection
Max.10 watt
External Volts Adjustment
+/- 5 % with 2K ohm 1 whatt trimmer
Unit Power Dissipation
Max. 10 watt
Under Frequency Protection (Factory Setting)
50/60 Hz DIP SW selectable
Soft Start Ramp Time
2 sec.
Dimensions
156mm L * 106mm W * 41mm H
Weight
450g +/- 2%
Voltage 60- 510 VAC single phase 2 wires
voltage is DIP switch selectable
Frequency 50 / 60 Hz, DIP switch selectable
Power Input
Voltage 60 - 300 VAC, single phase 2 wires
Output
Voltage Max. 90 VDC @ 240 VAC input
Corrent Continuos 16A
Intermittent 20A for 10 sec
Resistance Min. 5 ohm
Voltage regulation
Residual voltage at AVR terminal > 5 VAC
Thermal Drift
0,03% per °C change in AVR ambient
Load Current Compensation
1A or 5A Max. 7% @ PF0.5 DIP Switch Selectable
Analogue Voltage Input
Max. +/-10% @ +/-3VDC
Over Excitation Protection
Max.10 watt
External Volts Adjustment
+/- 5 % with 2K ohm 1 whatt trimmer
Unit Power Dissipation
Max. 10 watt
Under Frequency Protection (Factory Setting)
50/60 Hz DIP SW selectable
Soft Start Ramp Time
2 sec.
Dimensions
156mm L * 106mm W * 41mm H
Weight
450g +/- 2%
viernes, 14 de agosto de 2015
lunes, 27 de julio de 2015
Technical specification
Sensing and power input:
Voltage 100-264 V ac 1 phase
Franquesy 50-60 Hz nominal
Output:
Voltage 82 V d.c @ 110 Va.c power input
voltage 45 V d.c @ 110 Va.c power input
Current continuous 5A (see note 1)
Transient 7.5 for 10 secs
Resistance 15 ohms min
Regulation:
+/- 1.0% (see note 2)
Thermal Drift
0.03% per deg. C in AVR ambient (see note 3)
Typical System Response
AVR response 20 ms
Field current to 90% 80 ms
Machine Volts 97% 300ms
External Voltage Adjustmet
+/-10% with 1 K ohm 1 watt trimmer (see note 4)
Increasing resistance lowers voltage.
Fixed 15kOhm resistor enables 110V sensing
Under Frequency Protection
Set point 94-98% Hz (see note 5)
Unit Power Dissipation
12 whatss maximum
Build Up Voltage
4 Volts @ AVR terminals
Quadrature Droop Input
10 ohms burden
Max. sensitivity: 0.07 A for 5% droop OPF
Max. input: 0.33 A
Over Excitation Protection
Set point 67 Vdc +/-3% (fixed)
Time delay 10-15 seconds (fixed)
Environmental
Vibration 20-100 Hz 50mm/sec
100Hz - 2kHz 3.3
Operating Humidity 0-70C (note 6)
Storage Temperature -55 to +80C
Notes
1. De-rate by 20% if mouted external to generator
2. Inclusive of 4% engine governing.
3. After 2 minutes warm- up
4. Generator de-rate may apply. Check with factory
5. Factory set, semi-sealed, jumper selectable.
6. De- rate output current by 5% per deg. C above 60C.
7. Non condensing.
Under Frequency Protection
Set point 94-98% Hz (see note 5)
Unit Power Dissipation
12 whatss maximum
Build Up Voltage
4 Volts @ AVR terminals
Quadrature Droop Input
10 ohms burden
Max. sensitivity: 0.07 A for 5% droop OPF
Max. input: 0.33 A
Over Excitation Protection
Set point 67 Vdc +/-3% (fixed)
Time delay 10-15 seconds (fixed)
Environmental
Vibration 20-100 Hz 50mm/sec
100Hz - 2kHz 3.3
Operating Humidity 0-70C (note 6)
Storage Temperature -55 to +80C
Notes
1. De-rate by 20% if mouted external to generator
2. Inclusive of 4% engine governing.
3. After 2 minutes warm- up
4. Generator de-rate may apply. Check with factory
5. Factory set, semi-sealed, jumper selectable.
6. De- rate output current by 5% per deg. C above 60C.
7. Non condensing.
Technical specification
Sensing Input
Voltage 190-264V ac max, 1 phase, 2 wire
Frequency 50-60 Hz nominal
Power Input (PMG)
Voltage 140-220V ac max, 3 phas, 3 wire
Current 3A/phase
Frequency 100-120Hz nominal
Output
Voltage max 120V dc
Current continuous 2.7 A
Intermittent 6A for 10 secs.
Resistance 15 ohms minimum
Regulation
+/- 1% (see note 1)
Thermal Drift
0.03% per °C change in AVR ambient (note 2)
Soft start ram time
3 seconds
Typical system response
AVR Response 10 ms
Filed current to 90% 80 ms
Machine Volts to 97% 300 ms
External voltage adjustment
+/- 10% with 1 k ohm 1 watt trimmor (see note 3)
Under frequency protection
Set point 95% Hz (see note 4)
Slope 170% down to 30 Hz
Unit power dissipation
12 watts maximum
Analogue input
Maximum input +/- 5V dc (see note 5)
Sensitivity: 0.07 A for 5% droop OPF
Max. input: 0.33 A
Over excitation protection
Set point 75 V dc
Time delay 10 seconds (fixed)
Environmental
Vibration 20-100 Hz 50mm/sec
100Hx - 2kHz 3.3g
Operating temperature -40 to +70°C
Storage temperature -55 to +80°C
Notes
1. With 4% engine governing.
2. After 10 minutes
3. Applies to mod status D onwards. Generator de-rate may
amply. Check with factory.
4. Factory set, semi-sealed, jumper selectable.
5. Any device connected to the analogue input must be fully
floating (galvanically isolated from ground), with an
insulation strenght of 500V ac
6. Non condensing.
sábado, 27 de junio de 2015

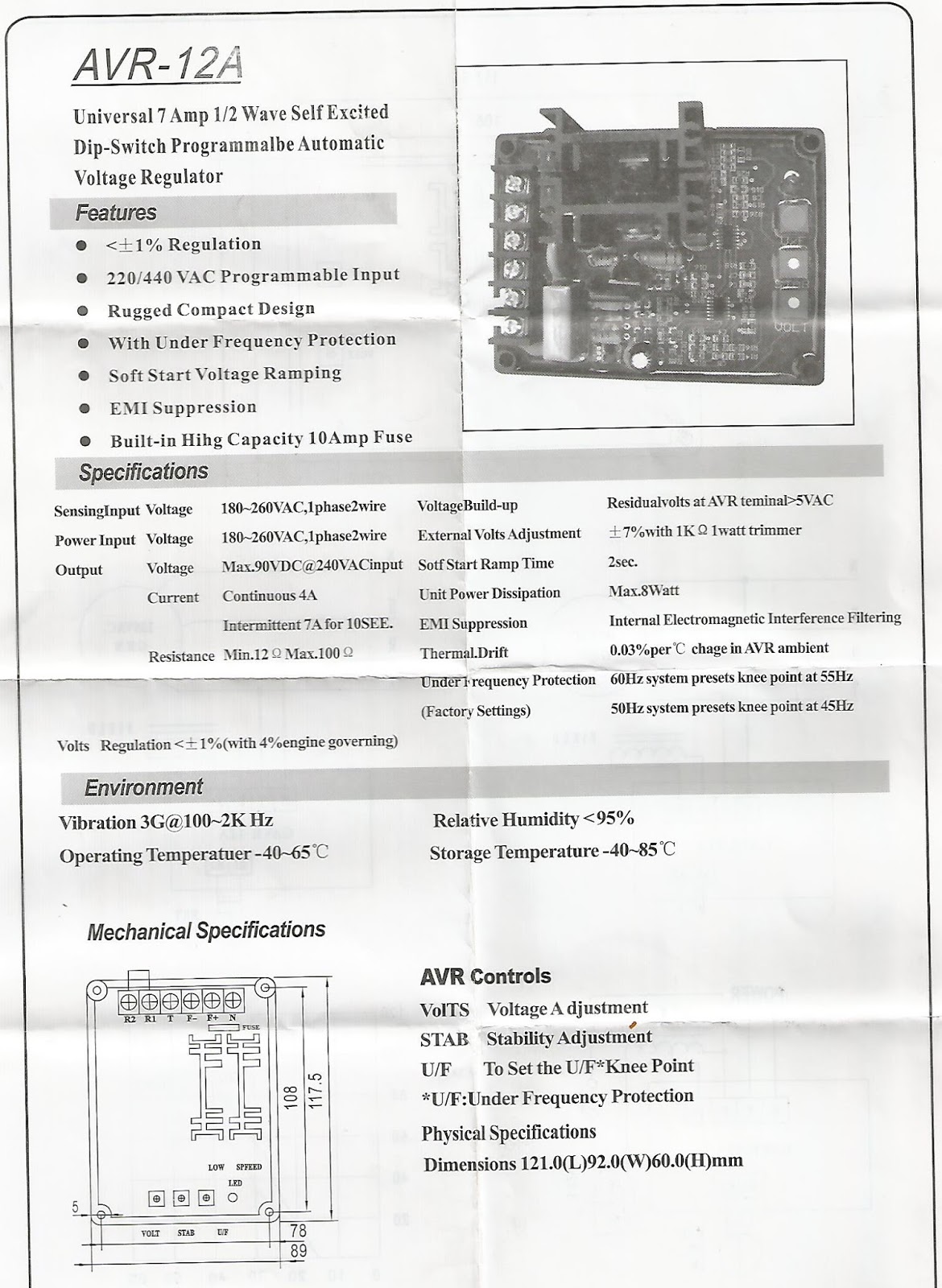

Features
- > +/- 1% Regulation
- 220/440 VAC Programmable Input
- Rugged Compact Desingn
- Whit Under Frequency Protection
- Soft Stars Voltage Ramping
- EMI Suppression
- Built-in Hihg Capacity 10 Amp Fuse
Specifications
Sensinglnput voltge: 180~260VAC,1phase 2wire voltageBuild-up Residualvolts at AVR terminal>5VACResistance: Min.12 Max.100 Thermal. Drift 0.03%per C°chage in AVR ambient
Features
- > +/- 1% Regulation
- 110/220/400 VAC Programmalble Input
- Rugged Compact Design
- With Under Frequency Protection
- Soft Start Voltage Ramping
- EMI Suppression
- Built- in Hihg Capacity 8 Amp Fuse
Specifications
(Factory Setting) 50Hz system presents knee point at 45Hz
