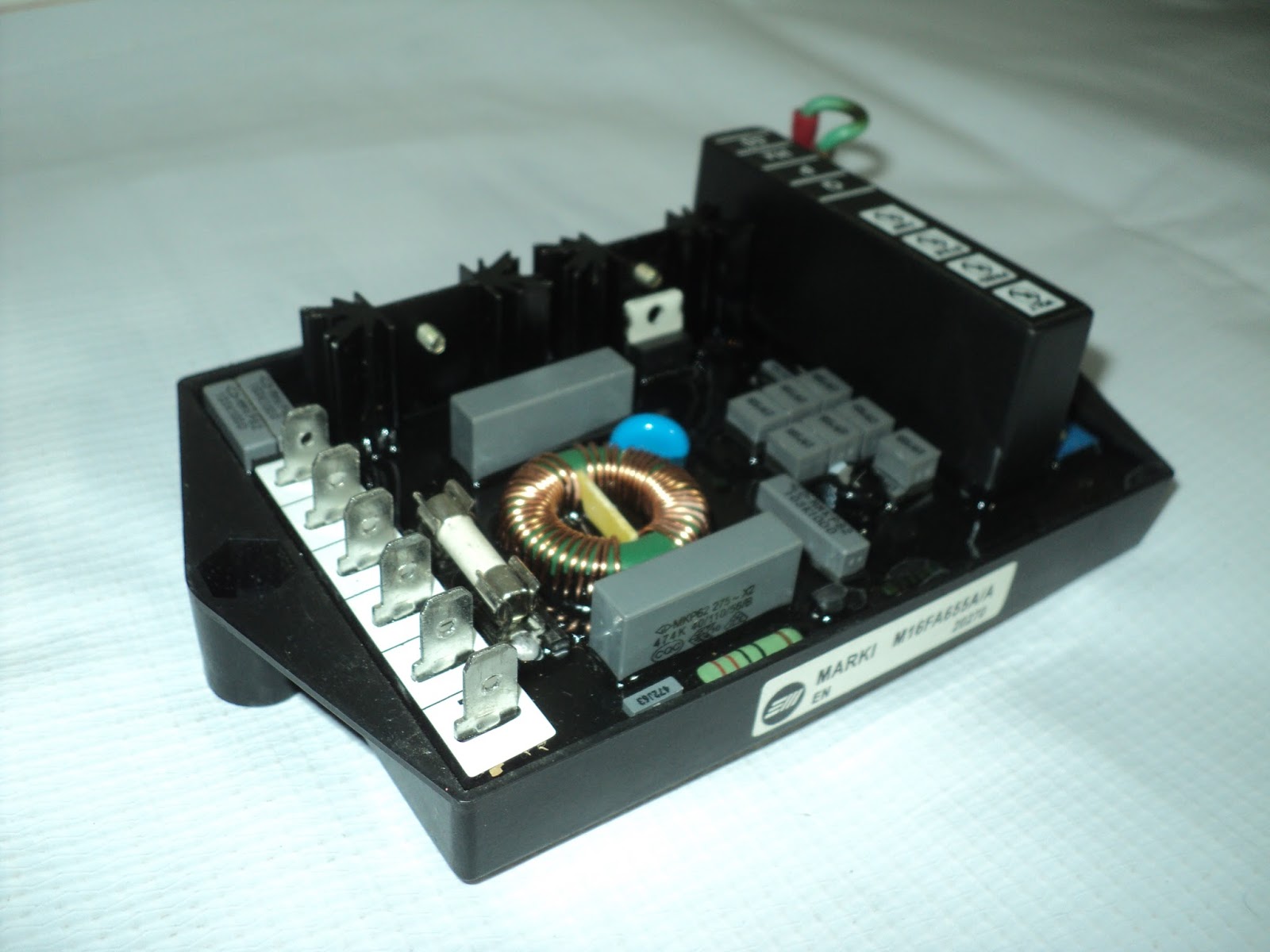

Regulador Automático de Voltaje (AVR) Modelo: M16FA655A

On 12:45 by Unknown in AVR, Generadores, Oaxaca, Piezas para Generadores, Regulador, Regulador Automático de Voltaje, Venta No comments

Technical Data

Regulation Accuracy

+/- 0.5% rated steady state conditions

Voltage Drift:

+/- 0.5% voltage change, for 50°C

Response Time:

1 cycle

Operating Temperature:

-30 °C % +70 °C

Exciter Field Resistance:

8 (min) % 20 (max)

Supply Voltage:

170-270 V

Power Supply:

350 VA (max)

Power Dissipated:

15 W (max)

Voltage Sensing:

170-270 V

Output Voltage (DC):

30V

Output Current (DC):

5 A (max, continuos)

Output Current (DC):

8A (max forcing one minute)

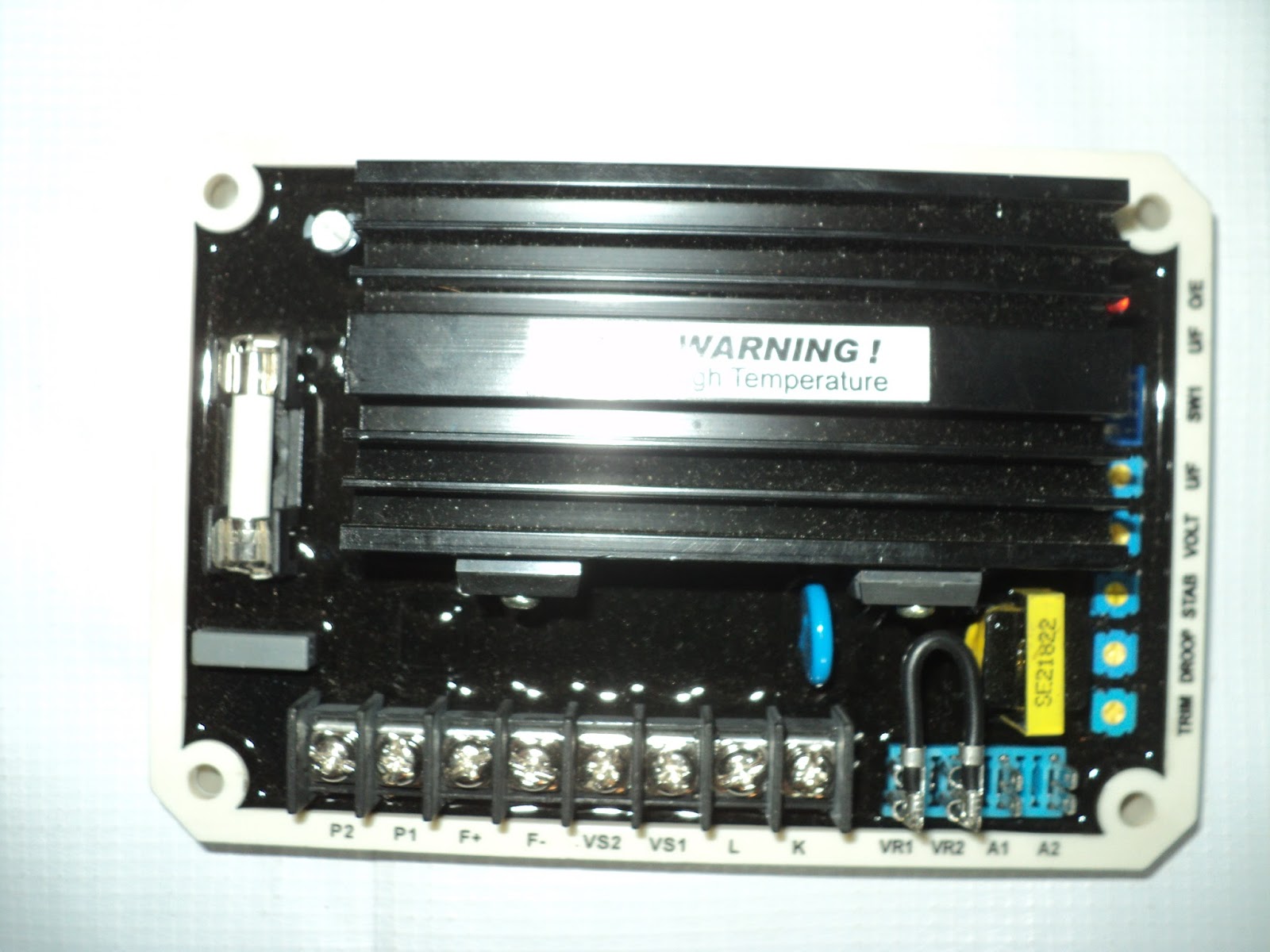

Regulador Automático de Voltaje (AVR) Modelo: EA16A

On 11:54 by Unknown in AVR, Generadores, Oaxaca, Piezas para Generadores, Regulador, Regulador Automático de Voltaje, Venta No comments

Introduction

Sensing Input
Voltage 60- 510 VAC single phase 2 wires
voltage is DIP switch selectable
Frequency 50 / 60 Hz, DIP switch selectable

Power Input
Voltage 60 - 300 VAC, single phase 2 wires

Output
Voltage Max. 90 VDC @ 240 VAC input
Corrent Continuos 16A
Intermittent 20A for 10 sec
Resistance Min. 5 ohm

Voltage regulation
Residual voltage at AVR terminal > 5 VAC

Thermal Drift
0,03% per °C change in AVR ambient

Load Current Compensation
1A or 5A Max. 7% @ PF0.5 DIP Switch Selectable

Analogue Voltage Input
Max. +/-10% @ +/-3VDC

Over Excitation Protection
Max.10 watt

External Volts Adjustment
+/- 5 % with 2K ohm 1 whatt trimmer

Unit Power Dissipation
Max. 10 watt

Under Frequency Protection (Factory Setting)
50/60 Hz DIP SW selectable

Soft Start Ramp Time
2 sec.

Dimensions
156mm L * 106mm W * 41mm H

Weight
450g +/- 2%
